Description
Lamella Separator Description

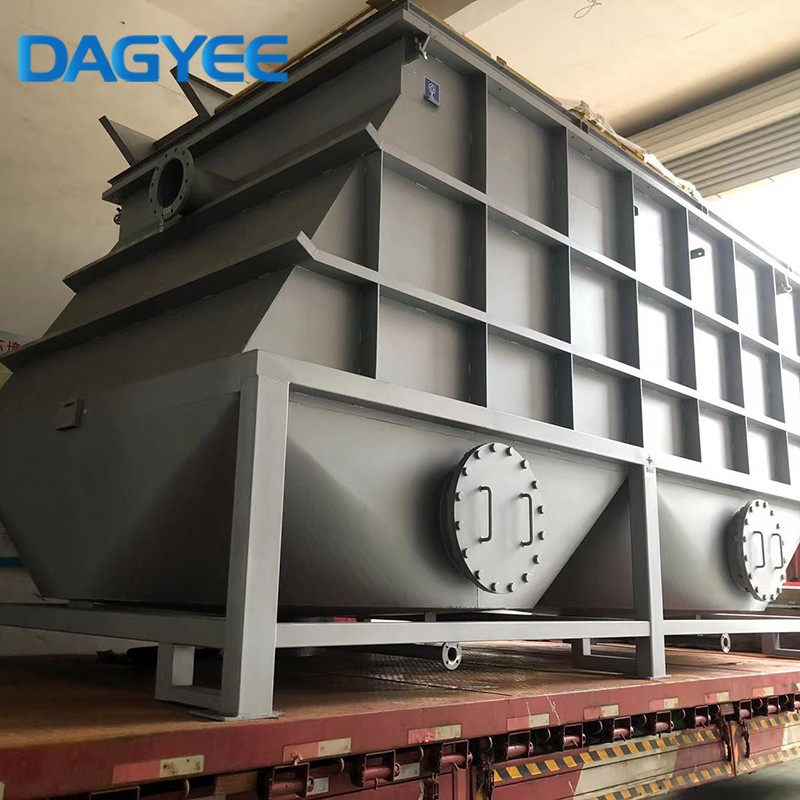

lamella clarifier inclined plate settler (IPS) a type of settler designed to remove particulates from liquids.
They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint.
The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir.
Available options
• Flash mixing/flocculation tank with agitator
• Full glass steel or stainless steel structure
• Concrete tank design
• Special coatings and plates
• Integrated mechanical sludge thickener
• Overhaul platforms and ladders
• In-house laboratory analysis to optimize equipment
• Drinking water design
• Gasket and removable cover
• Automatic desilting
• Instrumentation and control
• Chemical feed equipment
• Sludge treatment and dewatering
• Pilot size units for field testing
Lamella Separator Model
DLC-I Gravity Lamella ,V shape mud bucket, simple structure, no energy consumption.
DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.
DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.
| DLC Model |
Capacities (m3/h) |
Piping Connections() | Physical Dimensions(m) | |||||
| Inlet(a) | Effluent(b) | Sludge(c) | Backwash(d) | L | W | H | ||
| DLC- | 5 | 80 | 80 | 50 | 50 | 2.55 | 1.6 | 2.9 |
| DLC- | 10 | 100 | 100 | 50 | 50 | 3.35 | 1.82 | 3 |
| DLC- | 15 | 100 | 100 | 50 | 50 | 3.35 | 2.02 | 3 |
| DLC- | 20 | 100 | 100 | 50 | 50 | 3.35 | 2.02 | 3 |
| DLC- | 30 | 150 | 150 | 50 | 50 | 4.2 | 2.22 | 3 |
| DLC- | 40 | 150 | 150 | 50 | 50 | 4 | 2.8 | 3 |
| DLC- | 50 | 200 | 200 | 50 | 50 | 4.65 | 2.82 | 3 |
| DLC- | 60 | 200 | 200 | 50 | 50 | 4.7 | 3 | 3 |
| DLC- | 70 | 250 | 200 | 50 | 50 | 6.4 | 2.6 | 3 |
| DLC- | 80 | 250 | 200 | 50 | 50 | 6.8 | 2.82 | 3 |
| DLC- | 100 | 250 | 250 | 50 | 50 | 7.05 | 3.02 | 3 |
Lamella Separator Advantages
Flash mixing/flocculation tank with agitator
Full glass steel or stainless steel structure
Concrete tank design
Special coatings and plates
Integrated mechanical sludge thickener
Overhaul platforms and ladders
In-house laboratory analysis to optimize equipment
Drinking water design
Gasket and removable cover
Automatic desilting
Instrumentation and control
Chemical feed equipment
Sludge treatment and dewatering
Pilot size units for field testing
Lamella Separator Applications
Fly Ash Waste
Flue Gas Desulfurization (FGD) Waste
Clarification
Solids Recovery
Cooling Tower Blowdown
Iron Removal
Municipal Water Treatment
Semiconductor Process Waste
Whitewater (Pulp & Paper)
Groundwater Remediation
Potable Water Clarification
Landfill Leachate
Boiler Waste Treatment
