What Is DAF Dissolved air flotation
WWTP DAF unit Industrial Wastewater,Oil Water Separator Wastewater Plant Treatment DAF Dissolved air flotation is an efficient flotation method for water clarification. The term refers to the method of producing flotation by dissolving air in the water under pressure and then releasing the pressure. When the pressure is released the solution becomes supersaturated with air as millions of small bubbles form. These bubbles attach to any particles in the water causing their density to become less than that of water. The particles then rapidly float to the surface for collection and removal, leaving the clarified water behind.
As a waste water process, DAGYEE DAF Dissolved air flotation is widely used in sewage treatment and water purification engineering. DAF dissolved air flotation is suitable for :
- Increase effluent recycling and fresh water reusing in paper and pulp
- Removal of heavy metal ions
- Separation of oil refinery effluent
- Removal of tannery wastewater
- Removal of chromaticity and impurities in printing and dyeing wastewater
- Solid-liquid separation of sewage and membrane after all kinds of bio-treatment
- Sludge concentration (capacity: 20%~ 30%, except the dedicated device which can be designed according to the requirements)
Why Choose DAF Dissolved Air Flotation
- Total suspended solids (TSS) reduced by up to 97
- Chemical oxygen demand (COD) removal rate of up to 60-80%
- Integrated sludge hopper for easy removal of solid deposits
- The DAF area provides a static space for the formation of the float
- Heavy-duty, fully protected, counter-current surface separator that removes surface float

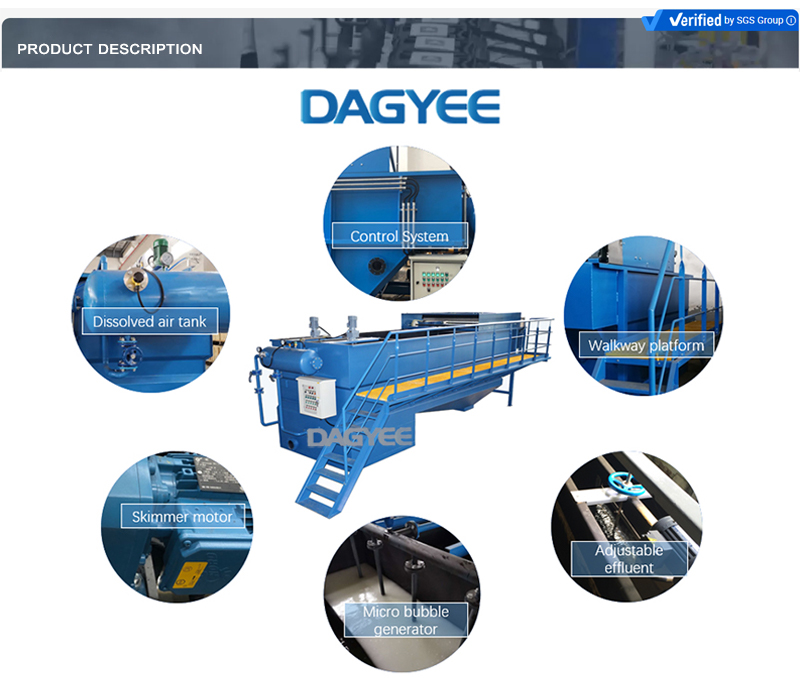

DAGYEE DAF Dissolved Air Flotation Advantage
-
The most effective white water / recycling design. Large effective settling area
-
With optional chemical processing stage improved separation efficiency
-
Compact clarifier and reaction cell design surface loading up to 15m3/m2hr
-
Rugged design for easy understanding, operation and maintenance
-
Carbon steel and stainless steel body material design, the lowest cost of ownership
|
DAF Model |
Qmax. (m3/h) |

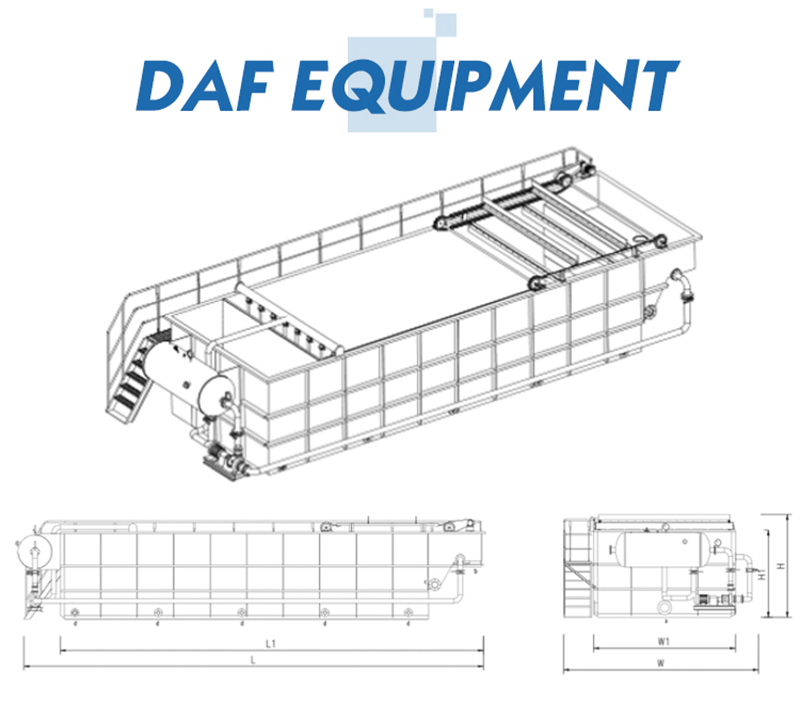

PhysicalDimensions(m) |
Weight (Kg) |
Operating Weight(kg) |
Power(kw) | ||||
|
L/L1 |
W/W1 |
H/H1 |
Refluxpump Kw |
Air compressor kw |
Skimmer |
||||
| DAF-002 | 2 | 3.4/2.5 | 2.4/1.16 | 2.2/1.7 | 1300 | 4000 | 0.75 | 0.55 | 0.2 |
| DAF-003 | 3 | 3.7/2.8 | 2.4/1.16 | 2.2/1.7 | 1500 | 5000 | 0.75 | 0.55 | 0.2 |
| DAF-005 | 5 | 4/3 | 2.4/1.16 | 2.2/1.7 | 1600 | 7000 | 1.1 | 0.55 | 0.2 |
| DAF-010 | 10 | 4.65/3.8 | 2.7/1.36 | 2.4/1.9 | 2000 | 12000 | 1.5 | 0.55 | 0.2 |
| DAF-015 | 15 | 5.6/4.5 | 2.9/1.66 | 2.5/2 | 2200 | 18000 | 2.2 | 0.75 | 0.2 |
| DAF-020 | 20 | 5.9/4.8 | 3.2/1.96 | 2.5/2 | 3000 | 22000 | 3 | 0.75 | 0.2 |
| DAF-030 | 30 | 6.8/5.5 | 3.2/2.16 | 2.7/2.2 | 3800 | 32000 | 3 | 0.75 | 0.4 |
| DAF-040 | 40 | 8/6.7 | 3.6/2.6 | 2.7/2.2 | 5000 | 45000 | 5.5 | 0.75 | 0.4 |
| DAF-050 | 50 | 8.4/7 | 3.6/2.6 | 2.7/2.2 | 5500 | 55000 | 7.5 | 0.75 | 0.4 |
| DAF-060 | 60 | 9.9/8.4 | 3.8/2.8 | 2.9/2.4 | 6000 | 66000 | 7.5 | 1.5 | 0.4 |
| DAF-070 | 70 | 10.4/9 | 3.8/2.8 | 2.9/2.4 | 6500 | 75000 | 11 | 1.5 | 0.4 |
| DAF-080 | 80 | 10.8/9.4 | 4/3 | 2.9/2.4 | 7500 | 100000 | 11 | 1.5 | 0.4 |
| DAF-100 | 100 | 12.1/10.6 | 4.2/3.2 | 2.9/2.4 | 9000 | 110000 | 15 | 1.5 | 0.4 |
| DAF-120 | 120 | 12.5/11.4 | 4.4/3.4 | 2.9/2.4 | 10000 | 130000 | 15 | 1.5 | 0.4 |
DAF Dissolved Air Flotation Application
| Slaughterhouses |
| Meat processing and pack- ing |
| Fish processing Dairies |
| Convenience food production |
| Margarine production Oil and fat refineries Canneries |
| Industrial kitchens and can- teens |
| Fast food providers Soap works Cosmetics industry Textile industry Chemical industry |
| Petrochemical industry Iron and steel industry Metal processing Galvanizing, electroplating Land remediation |
