Description
Dissolved Air Flotation Description

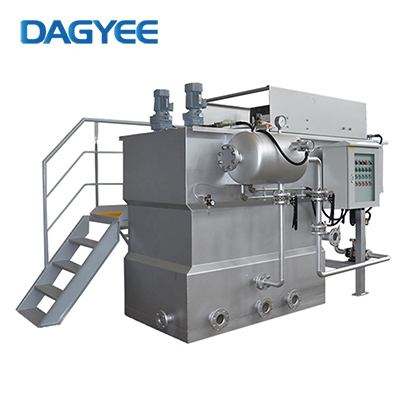

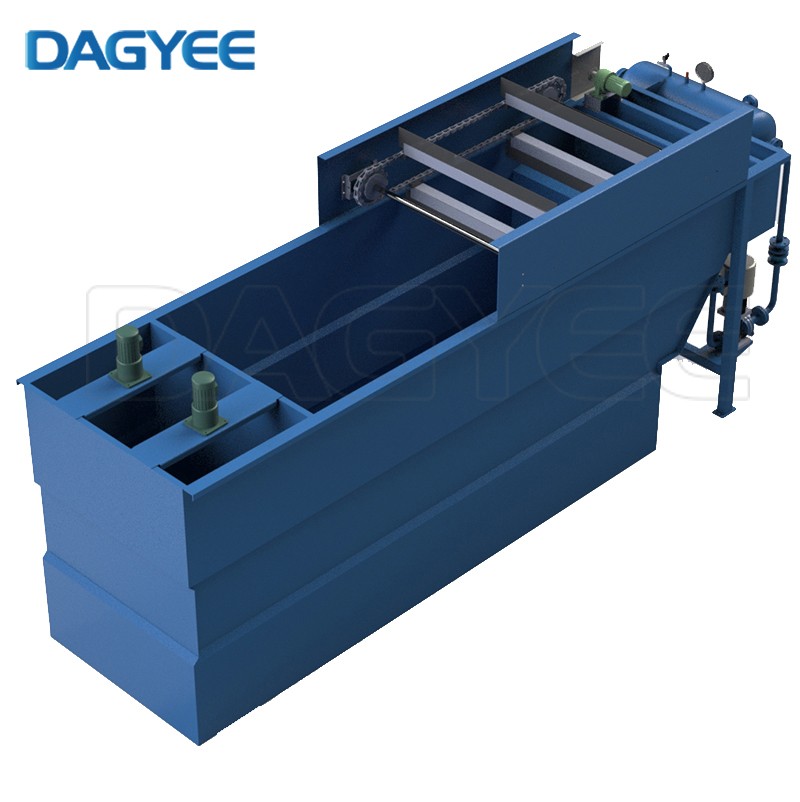

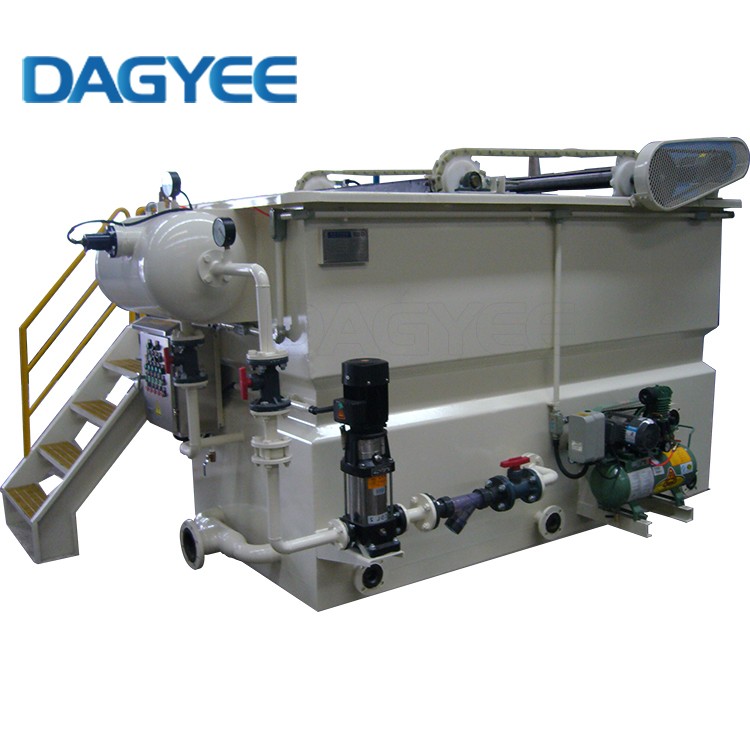

DAF Dissolved air flotation consists of flotation tank, dissolved air system, reflux pipe, dissolved air released system, skimmer (Based on customer needs, there are combined type, traveling type and chain-plate type to choose.), electric cabinet and so on.
Air flotation separation technology of DAGYEE DAF Dissolved air flotation dissolved air into water at certain working pressure. In the process, pressurized water is saturated with dissolved air and is discharged into a flotation vessel. The microscopic air bubbles produced by released air attach to suspended solids and float them to the surface, forming a sludge blanket. A scoop removes the thickened sludge. Finally, it complete purifies the water.
Dissolved air flotation Feature
Oil content in outlet water can be reduced less than 1mg/L
Broken ring, broken chain, decolorization, deodorant, disinfection
No man need on duty
The skid mounted structure is available out-of-the-box
No polymer consumption, low cost of investment and operating
An efficient performance of solid and liquid seperation,whicn is from unique dissolved air and micro bubble manufacturing technology.
Less water residence time
Instant power on and off
Dissolved Air Flotation Available Options
Access platforms with ladder or stairs
Automatic sludge pump out packages
Chemical pretreatment systems
Concrete tank designs for large in ground installations
Duplex systems for redundancy
Effluent monitoring
Effluent sampling
Explosion-proof design
Flash mix/flocculation tanks with mixers
Full FRP or stainless steel construction
Influent equalization
Influent / effluent lift stations
Instrumentation and controls
Removable covers with gaskets
Integral mechanical sludge thickener
On board reagent storage (day tanks)
Pilot size units for on-site testing
Potable water design
Special coatings
Sludge handling and dewatering
Dissolved Air Flotation Applications
Paper-making waste water treatment for fiber recycling.
Paint, printing and dyeing waste water treatment for color reduction.
Chemical waste water treatment.
Food waste water treatment.
Oil refinery for separating oil and impurity.
