Description

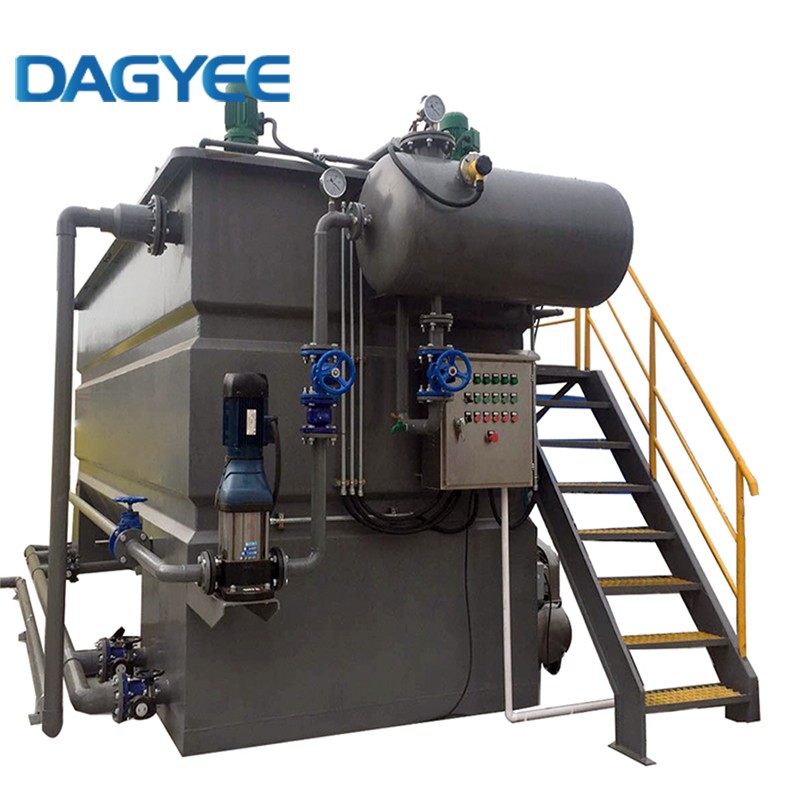

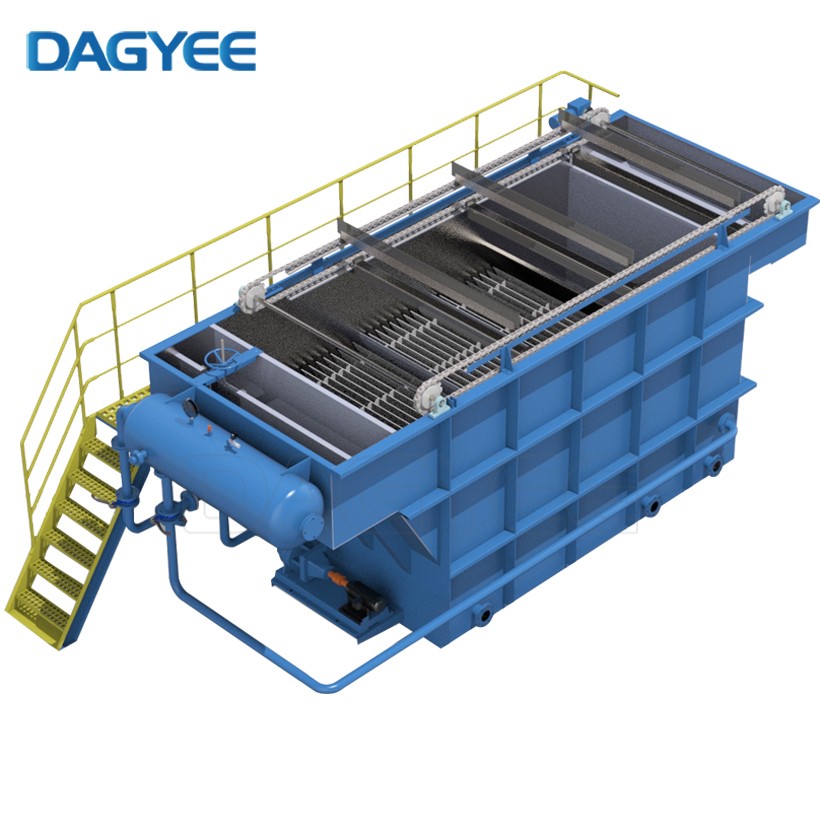

Dissolved air flotation Description
The DAF combines Ph Control, Coagulation, Flocculation and Flotation, all in one unit. The Patented SYSDAF technology does not require compressed air or bottom scraping. Dissolved air is provided to the system all along the bottom of the flotation tank and this ensures very efficient operation, maximum removal of pollutants and no sedimentation.
Coagulation/Flocculation
These processes play a central role in many water and wastewater technologies by facilitating the removal of suspended solids and colloidal particles. This is achieved through the addition of organic or inorganic chemical reagents called coagulants and flocculants. Coagulants neutralize the repulsive electrical charges (typically negative) surrounding suspended or colloidal particles, allowing them to stick together and create clumps or “flocs”. Flocculants support the agglomeration or aggregation of the coagulated particles into larger floccules.
Dissolved air flotation Feature
Adjustable effluent weir troughs
Epoxy coated carbon steel tank
Factory tested
Seamlessly integrates with other Hydro-Flo offered wastewater products
Stand alone operation
Standard units can be manufactured for flows from 5 gpm to 3500 gpm and above, in a single above grade tank
Structural steel support legs
Dissolved air flotation Available Options
Access platforms with ladder or stairs
Automatic sludge pump out packages
Chemical pretreatment systems
Concrete tank designs for large in ground installations
Duplex systems for redundancy
Effluent monitoring
Effluent sampling
Explosion-proof design
Flash mix/flocculation tanks with mixers
Full FRP or stainless steel construction
Influent equalization
Influent / effluent lift stations
Instrumentation and controls
Removable covers with gaskets
Integral mechanical sludge thickener
On board reagent storage (day tanks)
Pilot size units for on-site testing
Potable water design
Special coatings
Sludge handling and dewatering
Dissolved Air Flotation Applications
Poultry and slaughterhouses
Petrochemical industry
Cosmetic wastewater
Convenience food production
Oil and fat refineries
Industrial kitchens and canteens
Meat, fish processing and packing
