Description

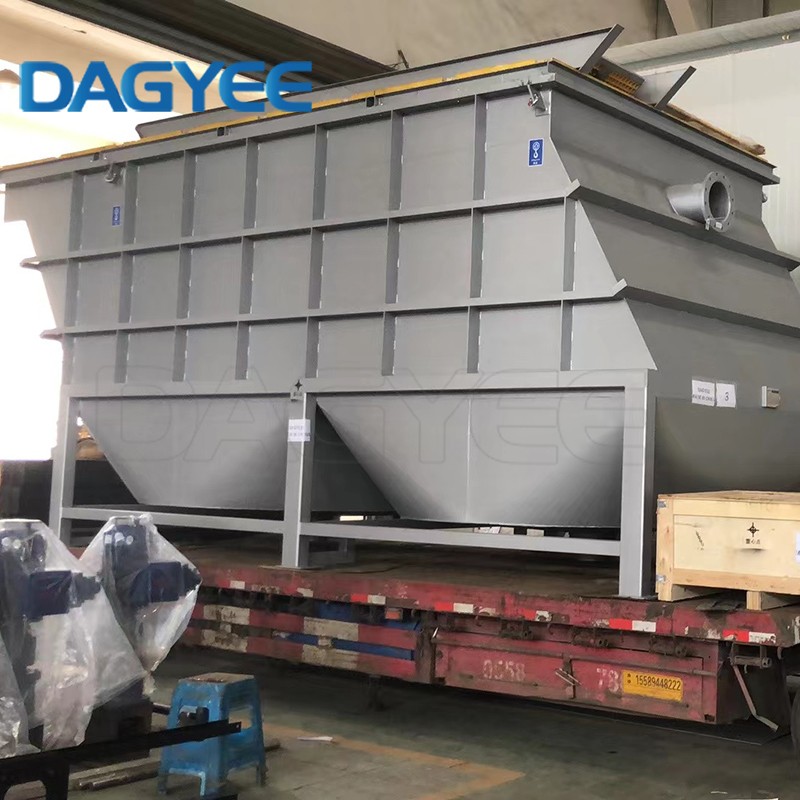

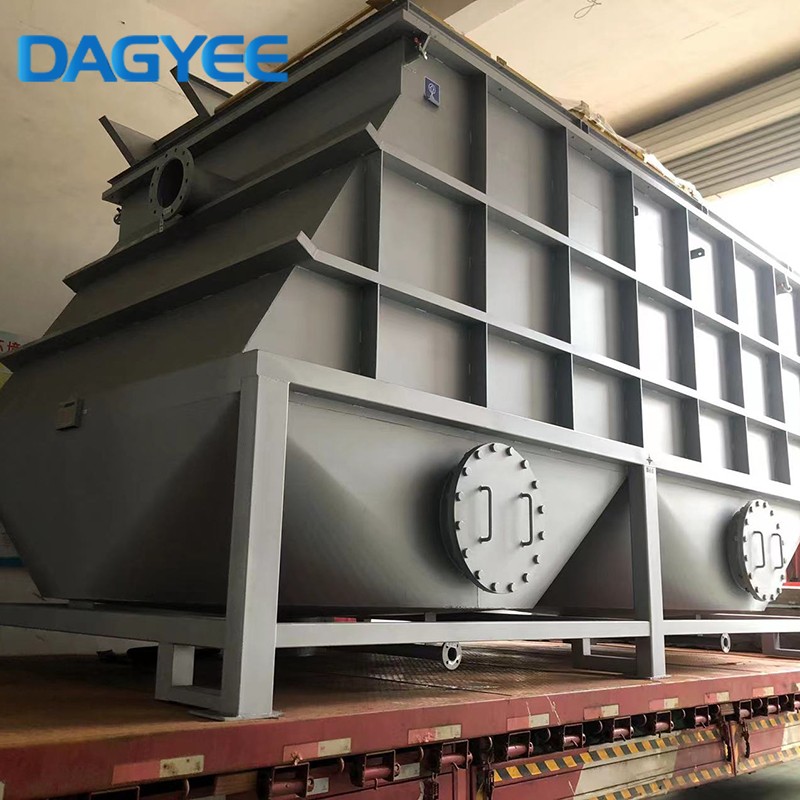

Lamella Separator Description
lamella clarifier uses the time proven concept of inclined plate clarification. This type of clarifier uses gravity in conjunction with the projected settling area of the 55-60 degree angle plastic parallel plates to settle solids from the pre-treated liquid flow. This treated liquid flows first to the flocculation tank where a polymer is added to promote floc growth, then down to the bottom of the clarifier and up through the plate pack(s) while the solids settle out to the bottom sludge cone or cones – depending upon the size. The solids are intermittently taken from the bottom cone tank for a further settling of the solids and then, finally to a filter press for final dewatering.
Available Options
Flash mixing/flocculation tank with agitator
Full glass steel or stainless steel structure
Concrete tank design
Special coatings and plates
Integrated mechanical sludge thickener
Overhaul platforms and ladders
In-house laboratory analysis to optimize equipment
Drinking water design
Gasket and removable cover
Automatic desilting
Instrumentation and control
Chemical feed equipment
Sludge treatment and dewatering
Pilot size units for field testing
Lamella Separator Model
DLC-I Gravity Lamella ,V shape mud bucket, simple structure, no energy consumption.
DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.
DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.
|
DLC |
Capacities |
Piping Connections() |
Physical Dimensions(m) |
|||||
|
Inlet(a) |
Effluent(b) |
Sludge(c) |
Backwash(d) |
L |
W |
H |
||
|
DLC- |
5 |
80 |
80 |
50 |
50 |
2.55 |
1.6 |
2.9 |
|
DLC- |
10 |
100 |
100 |
50 |
50 |
3.35 |
1.82 |
3 |
|
DLC- |
15 |
100 |
100 |
50 |
50 |
3.35 |
2.02 |
3 |
|
DLC- |
20 |
100 |
100 |
50 |
50 |
3.35 |
2.02 |
3 |
|
DLC- |
30 |
150 |
150 |
50 |
50 |
4.2 |
2.22 |
3 |
|
DLC- |
40 |
150 |
150 |
50 |
50 |
4 |
2.8 |
3 |
|
DLC- |
50 |
200 |
200 |
50 |
50 |
4.65 |
2.82 |
3 |
|
DLC- |
60 |
200 |
200 |
50 |
50 |
4.7 |
3 |
3 |
|
DLC- |
70 |
250 |
200 |
50 |
50 |
6.4 |
2.6 |
3 |
|
DLC- |
80 |
250 |
200 |
50 |
50 |
6.8 |
2.82 |
3 |
|
DLC- |
100 |
250 |
250 |
50 |
50 |
7.05 |
3.02 |
3 |
Lamella Separator Advantages
Unit is Completely Assembled
Low Installation
Conservative Design 0.2 GPM/Ft2
Completely Automatic, Gravity in Gravity Out
Reduced Floor Space
Large Compartment Flocculation Tanks with Mixer for Extra Retention Time (approximately 50-60 minutes)
Lamella Separator Applications
Heavy Metals Removal
Filter Press Belt Wash
Battery Plant Heavy Metals Removal
Hazardous Waste Remediation
Brine Clarification
Plating and Finishing Wastes
Food & Beverage Waste
Trace Metals Reduction
Storm Water Management
Bleach Plant Wash Water
Incinerator Wet Scrubber
Potable Water Pretreatment
