Description

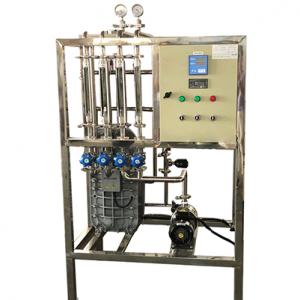

Industry Water Plant EDI Supplier Ro Systems Reverse Osmosis Filters
How Does Reverse Osmosis Work?
Reverse osmosis systemspurify water by forcing pressurized water through a very fine plastic membrane. If the raw water to be processed comes from a well or other private source, it may need to be disinfected and pre-filtered (to remove chlorine and/or particulate matter/sediment) before the R/O unit to remove contaminants that may scale or damage membrane.
How Do I Know What Size Unit to Buy?
R/O units are rated based on the amount of treated water produced each day. For example, one type of equipment can produce 5000 liters of treated water per day under its design conditions. In fact, conditions often change. The pipeline pressure is usually low, and the water is usually below 25°C. The back pressure in the tank may reduce the performance of the equipment. Therefore, if you find any of the above problems, you should check the water quality and purchase a larger rated device than needed.
Reverse Osmosis Ro System Water Features
- High-precision filter, the pore size is nanometer, the best water quality
-
Automatic switching of manual/electric control system;
-
With self-check function, automatic boiling water system without water point, water full stop, no pressure protection and other safety devices;
- With open RO membrane automatic cleaning and automatic double cleaning of the water tank, it can extend the service life of the RO membrane;
-
With online water quality monitoring (conductivity display), flow and pressure online display functions;
- Equipment integration, simple installation, simple operation, no special responsibilities; Equipment failure has an automatic alarm function;
- High water production, high desalination rate and long service life;
- Core components (pumps, reverse osmosis membranes, electronic control systems, etc.) imported/domestic joint venture brands; The equipment rack is made of stainless steel, the low-pressure pipe is made of UPVC, and the high-pressure pipe is made of SUS304 stainless steel.
Reverse Osmosis Ro System Water Process
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2.Quartz sand filter-- get rid of turbidity, suspended matter, organic matter, colloid.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter.
4. Softener(Optional)--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
6. High pressure pump-- Provide the high pressure to RO membrane .
7.RO Reverse Osmosis Unit -- main part of the plant. RO membrane's desalting rate can reach 99%.
8. Storage Tank,Achieve treatment effect.
Reverse Osmosis Ro Systems Case
