Description
What Is Tube Air Diffusers
Tube Air Diffusers for effluent treatment
A suitable adapter can be used to connect one side of the Tube Air Diffusers for sewage treatment or in pairs to different rectangular and circular tubes ABS material . The diaphragm is made of high-quality EPDM material and has fine or coarse bubble perforations. When changing the membrane, the supporting tube ABS or PVC material can be reused.The lifting-type tube air diffuser is developed by our company over year’s efforts. It is a new type of oxygenation aerator and the core equipment of A/O process (activated sludge biochemistry technology). It can be applied to every position of the sewage pool. It is featured by easy and convenient installation and maintenance, even oxygenation and low energy consumption.Flexible, easy and convenient installation. It can be installed during normal operation, not necessary to drain water. Simple maintenance.
1, The rubber membrane pipe is made from imported ethylene-propylene diene copolymer (EPDM) or silicon rubber, which makes the membrane anti-aging, corrosion-resisting and long service life, as long as 5 to 8 years.
2, The aerating hole is evenly formed, leading to good expandability and instant closing. During aerating work, the fine bubbles (1 – 3 mm) can be generated and the oxygenation utilization can be as high 35 – 42%.
3, The gas vent is used to distribute the gas in a quick and even way. The aerating membrane stresses evenly, which can increase the service life of the rubber diaphragm pipe and the uniformity of released bubbles and improve the aerating effect.
Tube Air Diffusers Parts
Especially recommended for the construction of mobile aeration systems, and all cases where a large output surface area is required when only a small amount of air distribution ducts are required.
The diffuser mainly composed
- A threaded head
- A rigid polypropylene support
- A tubular membrane with tiny holes in the elastomer
- Fixed with a stainless steel band clamp

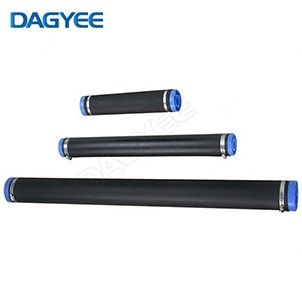

Diffuser Technical Table
| Model | φ63*500 | φ63*750 | φ63*1000 |
| MOC | EPDM/Silicon membrane | EPDM/Silicon membrane | EPDM/Silicon membrane |
| ABS /PP carrier plate | ABS /PP carrier plate | ABS /PP carrier plate | |
| Length | 500mm | 750mm | 1000mm |
| Connector | 3/4 NPT | 3/4 NPT | 3/4 NPT |
| Flow Range | 2-14m³/h | 5-20m³/h | 6-28m³/h |
| Bubble Size | 0.8-2mm | 0.8-2mm | 0.8-2mm |
| Service Area | 0.75-2.5m² | 1.0-3.0m² | 1.5-3.5m² |
| Service Life | >8 year | >8 year | >8year |
DAGYEE Diffuser Features
- Increased dissolved oxygen DO
- Declining biochemical oxygen demand BOD
- Improved treatment of TSS total suspended solids
- Short notice emergency aeration and simplified treatment repair
- Aeration system energy savings
-
Overall reduction in maintenance
Diffuser Used
- Industrial Wastewater Aeration
- Portable And Versatile Aeration System
- Efficient Mixing & Aeration
- Emergency Wastewater Aeration
- Many Years of Experience at Your Service

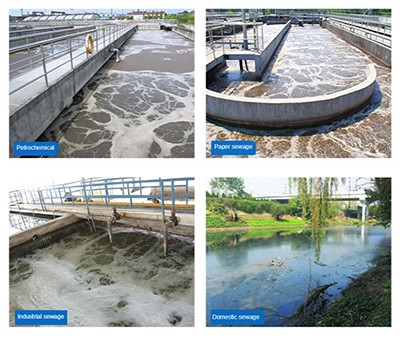

Diffuser Application
- Preservation aeration of waste water
- Oxygenation of activation basins
- Oxygenation to stabilize sludge
- Aeration of rivers and lakes
- Aeration of fish ponds
- CO admission for neutralization
