Description

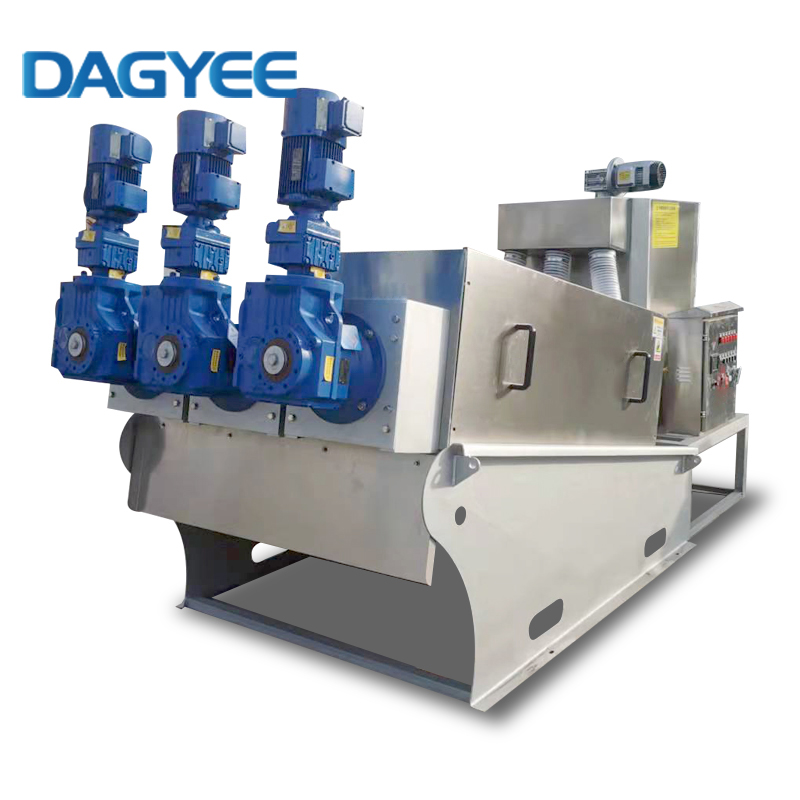

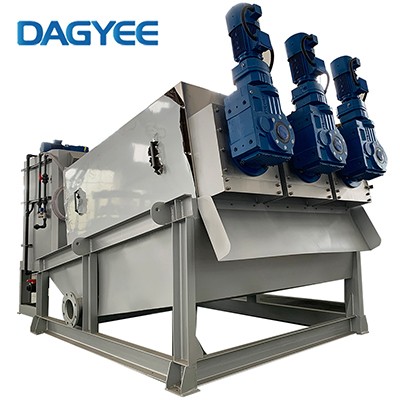

Screw Press Dehydrator
Multidisc sludge dewatering screw press is integrated with sludge flocculation tank which efficiently mixes the input sludge with the optimal dose of flocculation.
This flocculated sludge then enters the screw body which in the initial stage has more open area to dewater the separated water faster.
As screw rotates at a rpm which is set to give optimum output carries the dewatered concentrated sludge forward towards the end.
As screw is been gradually increasing making the valley / volume available for the sludge narrow towards the outlet so that flocculated sludge that is concentrated by gravity filtration is further dewatered by compression.
DAGYEE Multi-disc screw press dehydrators can cope up with a wide range of sludge concentrations from 0.2% to 10%, and also stably can dewater sludge that has high oil content.
Screw Press Dehydrator Features
- Suitable for sludge dewatering of high/low consistency.
- There is no need to worry about jam up. Reduce the cleaning water consumption.
- The electrical cabinet, disposal tank and dehydrator are integrated, which reduces the covering area and brings convenience to installment.
- The dehydrator is enclosed working, which reduces the bad smell and improves the working environment.
- Automatically working for 24 hours, reducing the labor strength of workers.
- The slow running speed of screw shaft reduces the power consumption and noise.
- It is made with stainless, extending the service life.
- It is convenient for daily maintenance.
Screw Press Dehydrator Technical Table
| Model | DL303 |
| DS capacity kg/h | 90--150 kg/h |
| Sludge capacity m3/h(2-50g/L) | 3-45 |
| Spiral diameter mm | ￠310*3 |
| Discharge Distance mm | 495 |
| Size L*W*H mm | 3605*1690*1600 |
| Net.Kg | 1520 |
| Run Kg | 3080 |
| Power Kw | 1.86 |
| Washing Q L/h | 120 |
Screw Press Dehydrator Application
- It is efficient & versatile press style with resolution
- There is no would like of pre-dewatering
- It will cut back sludge volume with typical dry solids content of two hundredth
- Solids capture of over ninety fifth, reducing filtrate treatment value
- Adaptable to native necessities and conditions, many units with totally different sizes are out there
- Automatic laundry system, reducing operational period
- Low footprint
- Low flocculent consumption
- Low energy consumption
- Low maintenance
