Description

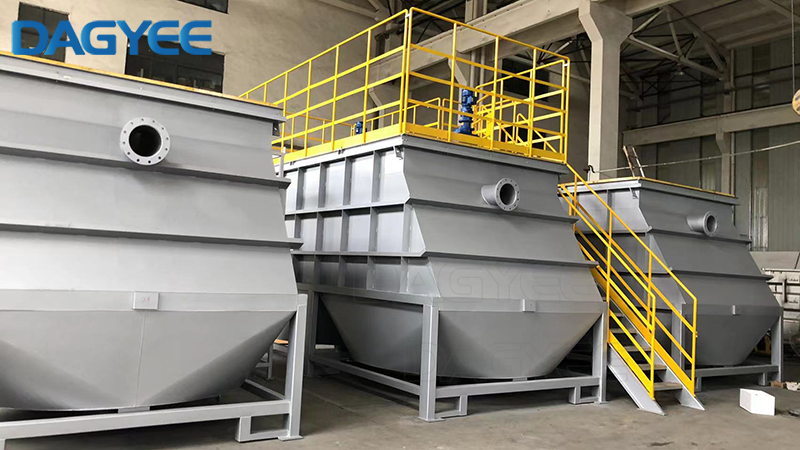

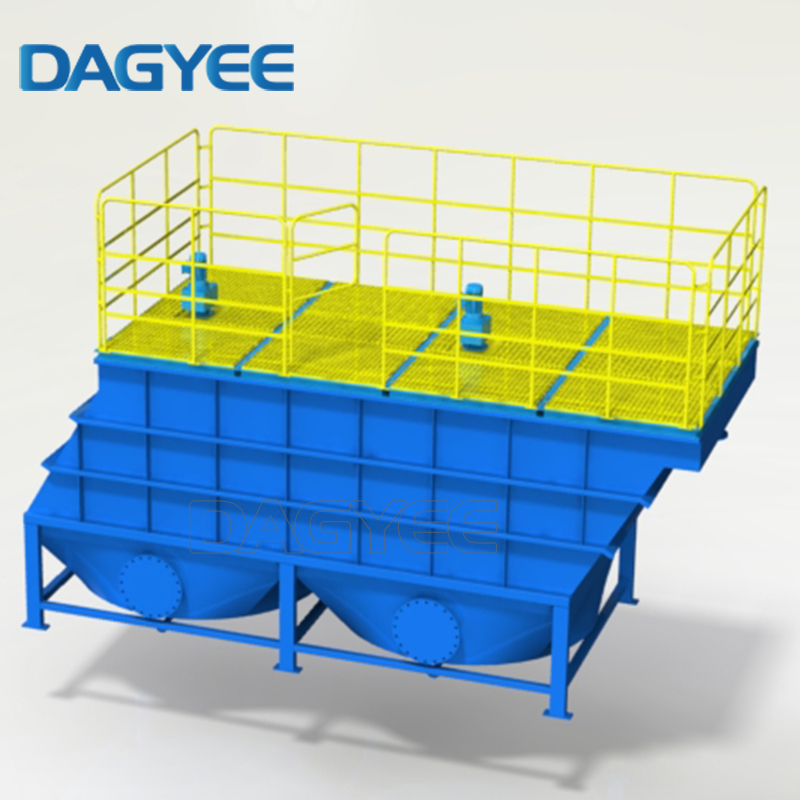

Lamella Inclined Plate Clarifier
Product Description
lamella clarifier uses the time proven concept of inclined plate clarification. This type of clarifier uses gravity in conjunction with the projected settling area of the 55-60 degree angle plastic parallel plates to settle solids from the pre-treated liquid flow. This treated liquid flows first to the flocculation tank where a polymer is added to promote floc growth, then down to the bottom of the clarifier and up through the plate pack(s) while the solids settle out to the bottom sludge cone or cones – depending upon the size. The solids are intermittently taken from the bottom cone tank for a further settling of the solids and then, finally to a filter press for final dewatering.
Product Features
- Simple structure,without wearing parts,
- Steady operation,easy operation
- Small power,save energy
- Small occupy area, low investment, high efficient
- Short retention time, high sediment efficiency, no sludge backflow.
|
20M3/hr Lamella Clarifier Specifications |
||
|
Parameter |
Units |
DCL-020 |
|
Flow Rate |
m3/h |
0-20 |
|
Effective Settling Area |
m2 |
20 |
|
Efficiency |
% |
80-90 |
|
Treated water turbidity |
NTU |
50-100 |
|
Dimensions (Clarifier Only) |
L x W x H (m) |
3.35*2.22*3 |
|
Inlet |
Inch |
4 |
|
Effluent |
Inch |
4 |
|
Sludge outlet |
Inch |
2 |
|
Backwash |
Inch |
2 |
|
Power |
Kw |
0.55 |
|
Weight |
Kg |
2300 |
|
Voltage |
Standard |
380V/3Phase/50Hz |
|
STANDARD INCLUSIONS + OPTIONS |
||
|
Lamella Body Epoxy Coated Carbon Steel |
✓ |
|
|
Feed Pump |
o |
|
|
Floculator Tanks |
o |
|
|
Flash & Floc Mixers |
o |
|
|
Sludge Scraper |
o |
|
|
Lamella / Floc Tank Support Galvanised Mild Steel Construction |
✓ |
|
|
Standard Controller |
✓ |
|
|
Lamella Body – 304ss |
o |
|
|
Lamella Body – 316ss |
o |
|
|
Variable Speed Mixer |
o |
|
|
Access Platform and Ladder |
o |
|
|
Sludge Hopper Actuated Valve |
o |
|
|
Sludge pump |
o |
|
Application Of The Product
- Water following physical-chemical treatment.
- Tailings in mining and metallurgical beneficiation.
- Solutions from gold leaching processes.
- Wet scrubbing effluents.
- Effluent treatment in pulp and paper mills.
- Filter backwash.
