Description

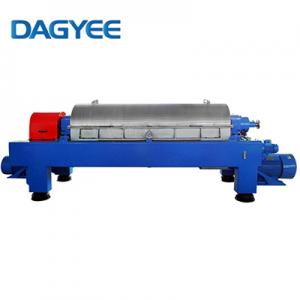

2 Phase Decanter Centrifuges Description
The LW decanter separator is suitable for plant oil,( such as palm oil, coconut oil, olive oil separation ,) animal oil(such as fish oil, restaurant garbage ect) fish meal, coal tar dehydration and slag, adapted to the different viscosity and water content in coal tar separation (emulsion), after separating the tar reach national standard.
2 Phase Decanter Centrifuges Model
| Model |
Drum diameter
mm
|
Length
mm
|
Maximum speed
rpm
|
Hightest separation
factor g
|
Mixture capacity
m3/h
|
Motor Power
Kw
|
| LW250-900 | 250 | 900 | 5000 | 3500 | 0.5-3 | 11/5.5 |
| LW350-1500 | 350 | 1500 | 3800 | 2850 | 1-5 | 18.5/5.5 |
| LW400-1200 | 400 | 1200 | 3400 | 2581 | 1-8 | 22/7.5 |
| LW400-1600 | 400 | 1600 | 3400 | 2581 | 2-10 | 22/7.5 |
| LW400-1800 | 400 | 1800 | 3400 | 2581 | 2-12 | 22/7.5 |
| LW450-1800 | 450 | 1800 | 3200 | 2572 | 5-20 | 30/7.5 |
| LW450-2000 | 450 | 2000 | 3200 | 2572 | 5-25 | 30/7.5 |
| LW530-2280 | 530 | 2280 | 2800 | 2350 | 10-50 | 45/15 |
| LW600-2400 | 600 | 2400 | 2600 | 2265 | 15-65 | 55/18.5 |
| LW650-2600 | 650 | 2600 | 2400 | 2100 | 20-80 | 55/90 |
| LW720-2500 | 720 | 2500 | 2200 | 1950 | 25-90 | 75/90 |
| LW800-2560 | 800 | 2560 | 2000 | 1800 | 30-100 | 90/132 |
| LW800-3200 | 800 | 3200 | 2000 | 1800 | 30-110 | 90/132 |
| LW900-3200 | 800 | 3200 | 1800 | 1650 | 30-150 | 132/200 |
2 Phase Decanter Centrifuges Technical
All contact parts can be made by SS304/SS316L/Duplex Steel 2205 Automatic adjustment of differential speed via VFD,Siemens PLC Spiral :
Surfacing welding tungsten carbide grinding
Two motor drive
Approximately 80 to 90% of the oil is recovered
Low labor costs due to continuous and automatic operation
Highest g-force for higher solids output
Belts for both primary motor and secondary
NSK/SKF Bearing
2 Phase Decanter Centrifuges Features
The machine can operate with a higher throughput capacity than smaller machines.This also reduces the number of units required
The device is simple to optimise and operate as it has few major variables and reliable feedback information
The decanter centrifuge has reduced labour costs compared to other processes, as it requires low continuous maintenance and operator attention
Compared to some competitive process such as the belt filter process, the decanter centrifuge has more process flexibility and higher levels of performance
2 Phase Decanter Centrifuges Application
Waste water treatment
Food processing
Waste recycling
Fish processing
Beneficiation
Organic Chemicals
Inorganic chemical industry
Polymer industry
Chemicals
