Description

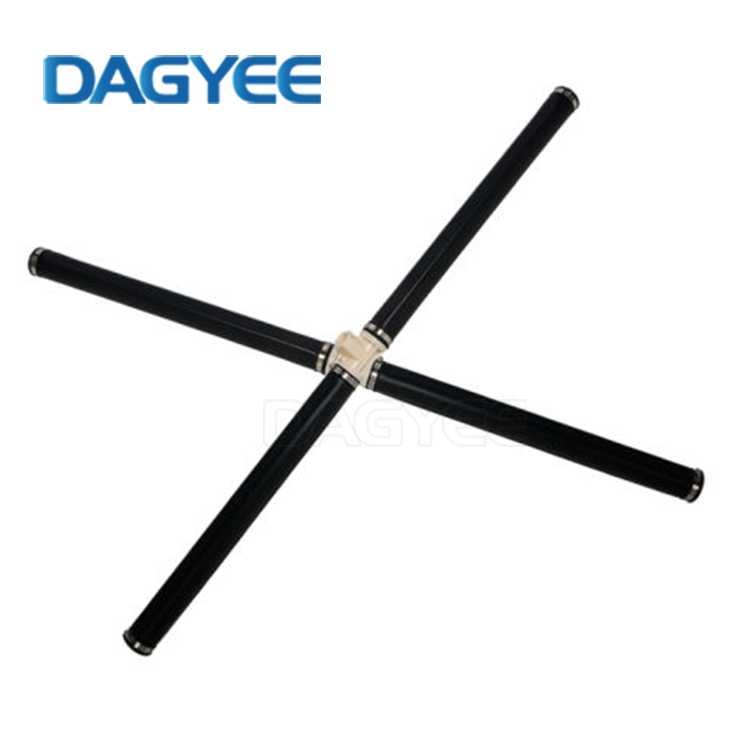

Aerator tube Nano Bubble Generator Air Diffuser
Tubular micro porous aerator is newly used micro porous aeration equipment in industrial wastewater and municipal wastewater biological treatment process; single large amount of ventilation, low bottom resistance, strong enhance ability and high ox-ygen transfer efficiency; there are large number of perforations on the most important parts " diaphragm ", when the air supply hole is open, micro-bubbles form, the hole will close automatically when the wind stops, which avoids sewage and debris to enter the pipe and prevent clogging of the aeration head.
The diffuser mainly composed
- A threaded head,
- A rigid polypropylene support and
- A tubular membrane with tiny holes in the elastomer
- Fixed with a stainless steel band clamp
Tubular Micro Porous Aerator Technical Table
| Model | φ63*500 | φ63*750 | φ63*1000 |
| MOC | EPDM/Silicon membrane | EPDM/Silicon membrane | EPDM/Silicon membrane |
| ABS /PP carrier plate | ABS /PP carrier plate | ABS /PP carrier plate | |
| Length | 500mm | 750mm | 1000mm |
| Connector | 3/4 NPT | 3/4 NPT | 3/4 NPT |
| Flow range | 2-14m³/h | 5-20m³/h | 6-28m³/h |
| Bubble Size | 0.8-2mm | 0.8-2mm | 0.8-2mm |
| Service Area | 0.75-2.5m² | 1.0-3.0m² | 1.5-3.5m² |
| Service Life | >8 year | >8 year | >8year |
DAGYEE Diffuser Features
-
Simple structure in linear type ,easy in installation and maintation;
- Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts;
- High pressure double crank to control the die opening and closing;
- Running in a high automatization and intellectualization,no pollution;
- Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Air Diffuser Application
- Preservation aeration of waste water
- Oxygenation of activation basins
- Oxygenation to stabilize sludge
- Aeration of rivers and lakes
- Aeration of fish ponds
-
CO admission for neutralization
