Lamella Tube Settlement Systems

Product Item：M.2020.206.C9739

Feature:Shallow Theory Designed

Product Name:Lamella Clarifier

Type:Automatic

Function:Efficient Sedimentation Tank

Lamella Separator Settler Inclined Plate Clarifier

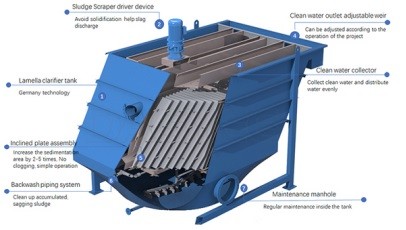

Gravity Settler is a pre-assembled, modular, high rate inclined plate settler that uses a counter-current flow principle for effective solids removal.
The inclined plate concept provides an effective settling area that is equal to the field of each plate as projected onto a horizontal surface.
Using the standard 2″ plate spacing and 55°-60°, up to 10 ft² of projected area become available for each square foot of land area.

lamella clarifier minimizes maintenance and operation the cost of compact design is much less than standard clarifying agent.
Lamella is great for new factories or upgrade existing installations with limited space system .the configuration ensures laminar flow conditions,resulting in high hydraulic uniformity and high effluent quality.
Point source treatment with Lamella is very suitable for many applications.

20M3/hr Lamella Clarifier Specifications
Parameter	Units	DCL-020
Flow Rate	m3/h	0-20
Effective Settling Area	m2	20
Efficiency	%	80-90
Treated water turbidity	NTU	50-100
Dimensions (Clarifier Only)	L x W x H (m)	3.352.223
Inlet	Inch	4
Effluent	Inch	4
Sludge outlet	Inch	2
Backwash	Inch	2
Power	Kw	0.55
Weight	Kg	2300
Voltage	Standard	380V/3Phase/50Hz Or Provide your standard when making an inquiry
STANDARD INCLUSIONS + OPTIONS ✓= Standard Supply, o = Optional Supply,
Lamella Body Epoxy Coated Carbon Steel		✓
Feed Pump		o
Floculator Tanks		o
Flash & Floc Mixers		o
Sludge Scraper		o
Lamella / Floc Tank Support Galvanised Mild Steel Construction		✓
Standard Controller		✓
Lamella Body – 304ss		o
Lamella Body – 316ss		o
Variable Speed Mixer		o
Access Platform and Ladder		o
Sludge Hopper Actuated Valve		o
Sludge pump		o
