Description
What Is DAF Dissolved air flotation

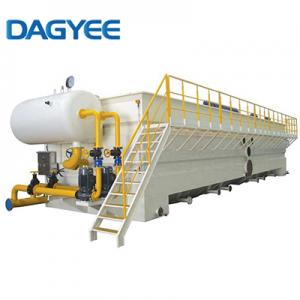

DAF Dissolved air flotationOil Water Separator Wastewater Plant Treatment is an efficient flotation method for water clarification. The term refers to the method of producing flotation by dissolving air in the water under pressure and then releasing the pressure. When the pressure is released the solution becomes supersaturated with air as millions of small bubbles form. These bubbles attach to any particles in the water causing their density to become less than that of water. The particles then rapidly float to the surface for collection and removal, leaving the clarified water behind.
Dissolved air flotation for printing and dyeing wastewater treatment plant 1-5m3/h.
Why Choose DAF Dissolved Air Flotation
- Total suspended solids (TSS) reduced by up to 97.
- Chemical oxygen demand (COD) removal rate of up to 60-80%.
- Integrated sludge hopper for easy removal of solid deposits .
- The DAF area provides a static space for the formation of the float.
- Heavy-duty, fully protected, counter-current surface separator that removes surface float.
DAF Dissolved Air Flotation Process
DAGYEE DAF Dissolved Air Flotation Advantage
Dissolved air pump is
inspiratory, pump pressurized mix within, gas to liquid efficient dissolving,
small bubbles than 30 um.
Low voltage operation, the dissolved gas efficiency is as
high as 97 %, release rate as high as 96%.
Tiny bubbles and suspended particles of efficient
adsorption, improve the SS remove effect.
Dissolved gas water dissolving efficiency 80-100 percent,
than traditional dissolved gas floating high efficiency three times.
Pressure-capacity curve smooth, easy to achieve automatic
control, easy to operate, easy maintenance, low noise.
|
DAF Model |
Qmax. (m3/h) |
PhysicalDimensions(m) |
Weight (Kg) |
Operating Weight(kg) |
Power(kw) | ||||
|
L/L1 |
W/W1 |
H/H1 |
Refluxpump Kw |
Air compressor kw |
Skimmer |
||||
| DAF-002 | 2 | 3.4/2.5 | 2.4/1.16 | 2.2/1.7 | 1300 | 4000 | 0.75 | 0.55 | 0.2 |
| DAF-003 | 3 | 3.7/2.8 | 2.4/1.16 | 2.2/1.7 | 1500 | 5000 | 0.75 | 0.55 | 0.2 |
| DAF-005 | 5 | 4/3 | 2.4/1.16 | 2.2/1.7 | 1600 | 7000 | 1.1 | 0.55 | 0.2 |
| DAF-010 | 10 | 4.65/3.8 | 2.7/1.36 | 2.4/1.9 | 2000 | 12000 | 1.5 | 0.55 | 0.2 |
| DAF-015 | 15 | 5.6/4.5 | 2.9/1.66 | 2.5/2 | 2200 | 18000 | 2.2 | 0.75 | 0.2 |
| DAF-020 | 20 | 5.9/4.8 | 3.2/1.96 | 2.5/2 | 3000 | 22000 | 3 | 0.75 | 0.2 |
| DAF-030 | 30 | 6.8/5.5 | 3.2/2.16 | 2.7/2.2 | 3800 | 32000 | 3 | 0.75 | 0.4 |
| DAF-040 | 40 | 8/6.7 | 3.6/2.6 | 2.7/2.2 | 5000 | 45000 | 5.5 | 0.75 | 0.4 |
| DAF-050 | 50 | 8.4/7 | 3.6/2.6 | 2.7/2.2 | 5500 | 55000 | 7.5 | 0.75 | 0.4 |
| DAF-060 | 60 | 9.9/8.4 | 3.8/2.8 | 2.9/2.4 | 6000 | 66000 | 7.5 | 1.5 | 0.4 |
| DAF-070 | 70 | 10.4/9 | 3.8/2.8 | 2.9/2.4 | 6500 | 75000 | 11 | 1.5 | 0.4 |
| DAF-080 | 80 | 10.8/9.4 | 4/3 | 2.9/2.4 | 7500 | 100000 | 11 | 1.5 | 0.4 |
| DAF-100 | 100 | 12.1/10.6 | 4.2/3.2 | 2.9/2.4 | 9000 | 110000 | 15 | 1.5 | 0.4 |
| DAF-120 | 120 | 12.5/11.4 | 4.4/3.4 | 2.9/2.4 | 10000 | 130000 | 15 | 1.5 | 0.4 |
DAF Dissolved Air Flotation Application
| Slaughterhouses |
| Meat processing and pack- ing |
| Fish processing Dairies |
| Convenience food production |
| Margarine production Oil and fat refineries Canneries |
| Industrial kitchens and can- teens |
| Fast food providers Soap works Cosmetics industry Textile industry Chemical industry |
| Petrochemical industry Iron and steel industry Metal processing Galvanizing, electroplating Land remediation |
