Heavy Metal Dissolved Air Flotation Machine Dosing Tank Daf System Aquarium Filter Heavy Metal Dissolved Air Flotation Machine Dosing Tank Daf System Aquarium Filter Heavy Metal Dissolved Air Flotation Machine Dosing Tank Daf System Aquarium Filter

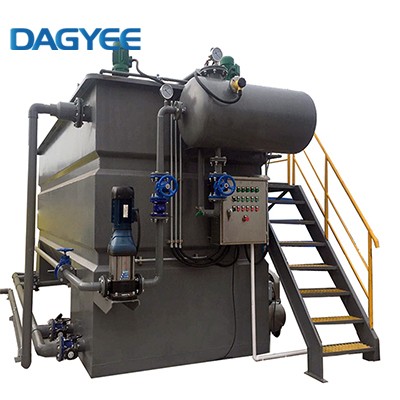

Heavy Metal Dissolved Air Flotation Machine Dosing Tank Daf System Aquarium Filter

  • Product Item:DAF-001
  • Capacity:2-150m3/hr
  • Material :Carbon steel SUS304,SUS316,FRP
  • Voltage: 380V 3 phase 50Hz or according to your requirements
  • MOQ:1Set, OEM accepted
  • Solid Liquid Separation Dissolved Air Flotation  , Clarifying  , Dissolved Air Flotation  , Industrial  , Daf Systems  , Micro Bubble Generator  , Dafsludge Separator
    Inquiry Send Email PDF

    Description

    What Is DAF Dissolved air flotation

    Dagyee DAF System proactively promotes solid/liquid separation providing better contaminant removal, more efficient chem usage and drier sludge – using a much smaller footprint than conventional DAFs. The DAF System is often referred to as a 'DAF on Steroids'. However, as opposed to DAF's that require significant retention time and rely on the old-school particle collision process to float solids, the DAF  System injects air into 100% of the waste stream while pushing water through a series of hydrocyclones  under controlled pressure, removing up to 100% of TSS & FOG. Chemicals are uncoiled in the Heads availing more than 2x the charge sites resulting in a higher rate of contaminant removal. Since separation occurs in the Heads, large tight flocs float and are skimmed off the tank into a sludge hopper. Drier sludge ensues as the air dissipates and chemicals recoil, to naturally dewater the flocs. Costs are reduced due to lower chemical, sludge handling and building costs.


    As a waste water process, DAGYEE DAF Dissolved air flotation is widely used in sewage treatment and water purification engineering. DAF Dissolved air flotation is suitable for :

    • Increase effluent recycling and fresh water reusing in paper and pulp
    • Removal of heavy metal ions
    • Separation of oil refinery effluent
    • Removal of tannery wastewater
    • Removal of chromaticity and impurities in printing and dyeing wastewater
    • Solid-liquid separation of sewage and membrane after all kinds of bio-treatment
    • Sludge concentration (capacity: 20%~ 30%, except the dedicated device which can be designed according to the requirements)

    Why Choose DAF Dissolved Air Flotation

    • Total suspended solids (TSS) reduced by up to 97.
    • Chemical oxygen demand (COD) removal rate of up to 60-80%.
    • Integrated sludge hopper for easy removal of solid deposits .
    • The DAF area provides a static space for the formation of the float.
    • Heavy-duty, fully protected, counter-current surface separator that removes surface float.


    DAF Dissolved Air Flotation Process



    DAGYEE DAF Dissolved Air Flotation Advantage

    Flow rate of one set: 1-300 m³/h.
    Recycle flow dissolved air flotation.
    High efficiency pressurization system providing high quantity dissolved-air water to create large quantities of small bubbles.
    Custom design on different dissolved air flotation equipment and recycle flow ratio according to the type of wastewater and treatment requirement to achieve target removal effect and stability.Adjustable stainless steel chain type skimmer to suit the different quantity of sludge.
    Integrated coagulation tank and or flocculation tank and cleaning water tank(as optional)is available to save the space and cost.
    Automatic and remote controllable.
    Material of construction: carbon steel epoxy painted, carbon steel FRP line, stainless steel SS304/SS316L.

    DAF
    Model
    Qmax.
    (m3/h)
    PhysicalDimensions(m) Weight
    (Kg)
    Operating
    Weight(kg)
    Power(kw)
    L/L1
    W/W1
    H/H1
    Refluxpump
    Kw
    Air compressor
    kw
    Skimmer
    DAF-002 2 3.4/2.5 2.4/1.16 2.2/1.7 1300 4000 0.75 0.55 0.2
    DAF-003 3 3.7/2.8 2.4/1.16 2.2/1.7 1500 5000 0.75 0.55 0.2
    DAF-005 5 4/3 2.4/1.16 2.2/1.7 1600 7000 1.1 0.55 0.2
    DAF-010 10 4.65/3.8 2.7/1.36 2.4/1.9 2000 12000 1.5 0.55 0.2
    DAF-015 15 5.6/4.5 2.9/1.66 2.5/2 2200 18000 2.2 0.75 0.2
    DAF-020 20 5.9/4.8 3.2/1.96 2.5/2 3000 22000 3 0.75 0.2
    DAF-030 30 6.8/5.5 3.2/2.16 2.7/2.2 3800 32000 3 0.75 0.4
    DAF-040 40 8/6.7 3.6/2.6 2.7/2.2 5000 45000 5.5 0.75 0.4
    DAF-050 50 8.4/7 3.6/2.6 2.7/2.2 5500 55000 7.5 0.75 0.4
    DAF-060 60 9.9/8.4 3.8/2.8 2.9/2.4 6000 66000 7.5 1.5 0.4
    DAF-070 70 10.4/9 3.8/2.8 2.9/2.4 6500 75000 11 1.5 0.4
    DAF-080 80 10.8/9.4 4/3 2.9/2.4 7500 100000 11 1.5 0.4
    DAF-100 100 12.1/10.6 4.2/3.2 2.9/2.4 9000 110000 15 1.5 0.4
    DAF-120 120 12.5/11.4 4.4/3.4 2.9/2.4 10000 130000 15 1.5 0.4


    DAF Dissolved Air Flotation Application

    Slaughterhouses
    Meat processing and pack- ing
    Fish processing Dairies
    Convenience food production
    Margarine production Oil and fat refineries Canneries
    Industrial kitchens and can- teens
    Fast food providers Soap works Cosmetics industry Textile industry Chemical industry
    Petrochemical industry Iron and steel industry Metal processing Galvanizing, electroplating Land remediation





    Inquiry Us





    Related Products

    Moving Bed Bio Reactors MBBR Media WWTP

    Moving Bed Bio Reactors MBBR Media WWTP

    Motor Compact Agitator Industrial Submersible Horizontal Mixer

    Motor Compact Agitator Industrial Submersible Horizontal Mixer

    Floating Media Biofiller MBBR IFAS Water Filter

    Floating Media Biofiller MBBR IFAS Water Filter

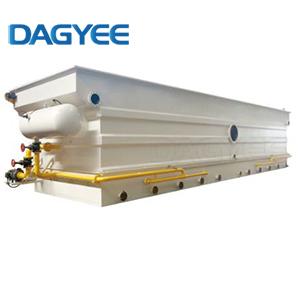

    Dissolved Air Flotation Clarifier Wastewater Treatment

    Dissolved Air Flotation Clarifier Wastewater Treatment

    Industrial RO Reverse purified water equipment filter water treatment systems

    Industrial RO Reverse purified water equipment filter water treatment systems

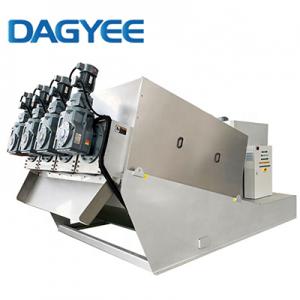

    Sludge Dewatering Press Thickener

    Sludge Dewatering Press Thickener

    Product Categories

    • Pretreatment Wastewater System
      • Static Screen Wastewater
      • Combined Wastewater Pre-treatment Unit
      • DAF Dissolved Air Flotation Water Treatment
      • Polymer PAM Preparation Unit
      • Internally Fed Drum Screen
      • Externally Fed Drum Screen
      • Shallow Air Flotation
    • static mixer
    • Sedimentation system WWTP
      • Lamella Clarifier Separator
      • Sludge thickener
      • Center Drive Mud Scraper
    • Biochemical System WWTP
      • MBBR Bio Carriers
      • Micro Bubble Diffuser
      • MBR Membrane
      • Submersible mixer
      • Aerator
    • Sludge Treatment System WWTP
      • Horizontal centrifugal separator
      • Chain and Flight Scraper Systems
      • Shaftless Screw Conveyor
      • Belt filter press
      • Frame Filter Press
      • Screw Press Sludge Dehydrator
    • Drinking water system
      • Quartz Sand Filter
      • Ultrafiltration system
      • Ro reverse Osmosis System
    • MBR Intelligent Water Treatment System
    • Water treatment parts

    Links

    Google.comBaidu.com

    内页左侧广告1

    LatestPost

    • News One: Dear customers, weolcome to our website
      News One: Dear customers, weolcome to ou
      2016-05-02

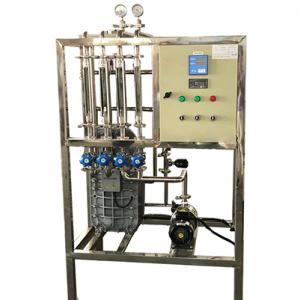

    •  Off-line cleaning methods and steps of reverse osmosis membrane elements
      Off-line cleaning methods and steps of
      2016-05-02

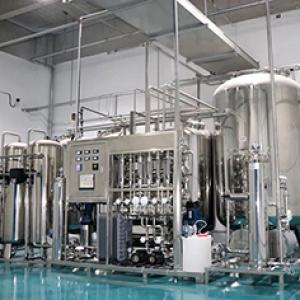

    • Reverse osmosis process
