Description

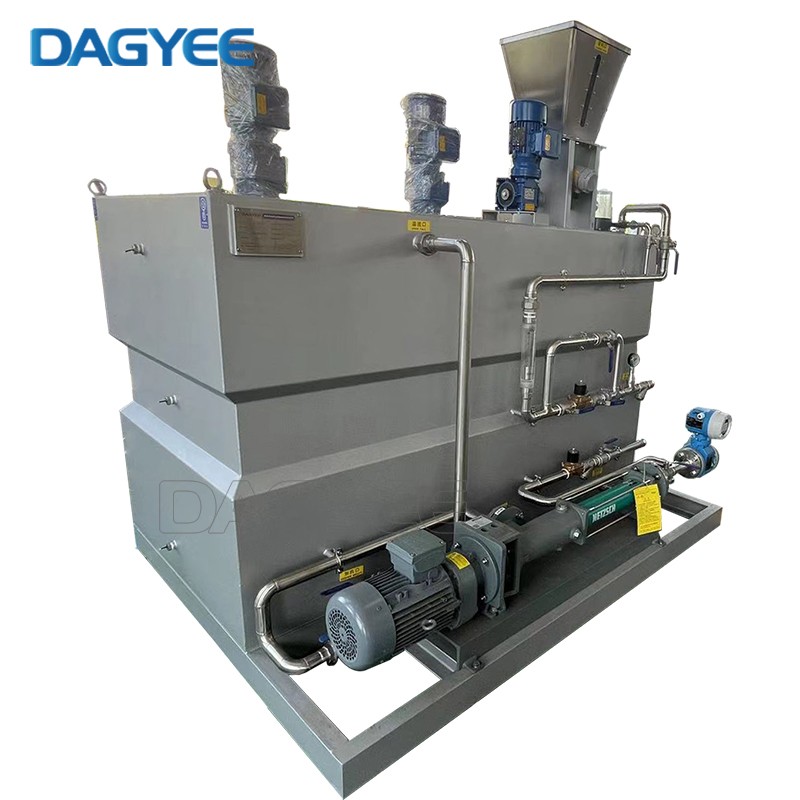

PAM polymer preparation unit Description
This device is flocculating agent automatic continuous preparation and addition system. Dry powder flocculating agent from spiral propeller to instant device premix with clean water, the wet agentia goes into mixing tank for mixing and diluting,prepare it with the concentration requirement; if it is a liquid flocculant, it is directly injected into the preparation tank by the screw pump. If it is a liquid flocculant agent, it is directly injected into the preparation tank by the screw pump. In the preparation process,The water inflow must be relatively stable under the observation of the flowmeter, to ensure that the concentration is no change in whole working process.
Auto-Dosing Device for wastewater is installed before Spiral Type Sludge Dewatering Equipment. It is used in PAM (polyacrylamide) dosing dissolving mixing and solution dosing. It consists of triple cavity case, dry powder addition system, liquid mixing system, control system, liquid injection system.
Polymer dosing device
Polymer dosing device is composed of hopper, push screw, electric heater and etc. The effective volume of the hopper can meet the dosage for a long time which is equipped with sight glasses for observing material level monitored by the dry powder level meter. The push screw driven by the high-precision reducer can satisfy the dosage. The electric heater can be installed in the discharge pipe of push screw, and it can prevent the powder from caking.
Polymer dissolving device
Polymer dissolving device is composed of pre-soaking device, tank, and 3 sets of mixers. The pre-soaking device is to infiltrate and mix the polymer powder in advance. The 3 tanks are precast mixing tank, homogeneous slaking tank and solution storage tank, in which there is a mixer correspond to guarantee the homogeneity.
Water supply device
Water supply device is composed of pipeline, manual ball valve, filter, pressure gauge, solenoid valve, stop valve, and the rotor flow meter, etc.
PAM Polymer Preparation Unit Model
PAM Polymer Preparation Feature
Safe and automatic control
PAM dosing: Inverted bag apparatus or Manual dosing
Accurate and adjustable chemical dosage, avoiding unnecessary waste
Easy maintenance, Attractive appearance, Small footprint, Compact structure
Strong technical support, design process according to user requirements
PAM Polymer Preparation Application
Using polymers and flocculants considerably facilitates the processes of removing particles and solids suspended in liquid in the following applications:
Treating potable and industrial processing water
Purifying waste water
Treating sludge, in order to improve the performance of centrifuges and filter presses
Processes for the paper, chemical, petrochemical, mineral processing, canning industries
