Description

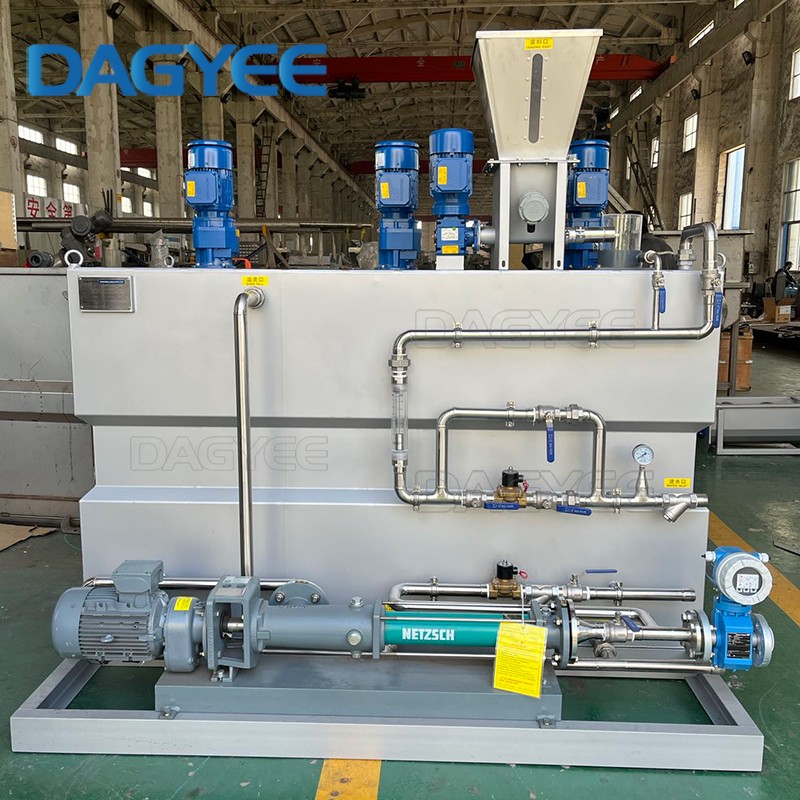

PAM polymer preparation unit Description
Polymer preparation with three tanks for mixing chemical with water. Dosing port at the top for filling chemical and water; the bottom has a sewage outlet for cleaning solution tank. This dosing device used for dosing PAM (polyacrylamide) which can realize integration of PAM powder feeding, dissolving and dosing. The device integrates both automatic and manual operation.
Function with dosing , mixing, conveying and automatic controlling, DAGYEE chemical dosing device is widely used for raw water treatment of power plants, boiler feedwater treatment, oilgathering dewater treatment, all kinds of chemical dosing and wastewater treatment, also can be used for automatic dosing of coagulate, phosphate removing agent, ammonia, whitewash, corrosion inhibitor antisludging agent, etc.
Polymer dosing device
Polymer dosing device is composed of hopper, push screw, electric heater and etc. The effective volume of the hopper can meet the dosage for a long time which is equipped with sight glasses for observing material level monitored by the dry powder level meter. The push screw driven by the high-precision reducer can satisfy the dosage. The electric heater can be installed in the discharge pipe of push screw, and it can prevent the powder from caking.
Polymer dissolving device
Polymer dissolving device is composed of pre-soaking device, tank, and 3 sets of mixers. The pre-soaking device is to infiltrate and mix the polymer powder in advance. The 3 tanks are precast mixing tank, homogeneous slaking tank and solution storage tank, in which there is a mixer correspond to guarantee the homogeneity.
Water supply device
Water supply device is composed of pipeline, manual ball valve, filter, pressure gauge, solenoid valve, stop valve, and the rotor flow meter, etc.
PAM Polymer Preparation Unit Model
PAM Polymer Preparation Feature
Automatic batching, dissolving, with one integration design, fully automatic running.
Quantitative medicine dispensing device measured accurately,with stepless transmission drive,It is convenient to adjust the feeding amount,The concentration range of the dispensing medicine is large.
With the functions of liquid level detection, flow control, auxiliary vibration feeding and so on,high level automation.
PAM Polymer Preparation Application
Municipal Sewage
Slaughter House
Metallurgical Industry Wastewater
Spraying Sewage
Printing & Dyeing Sewage
Metal-Processing Sewage
Mining Stone Wastewater
Electronic Sewage
