Description

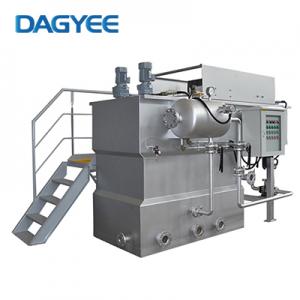

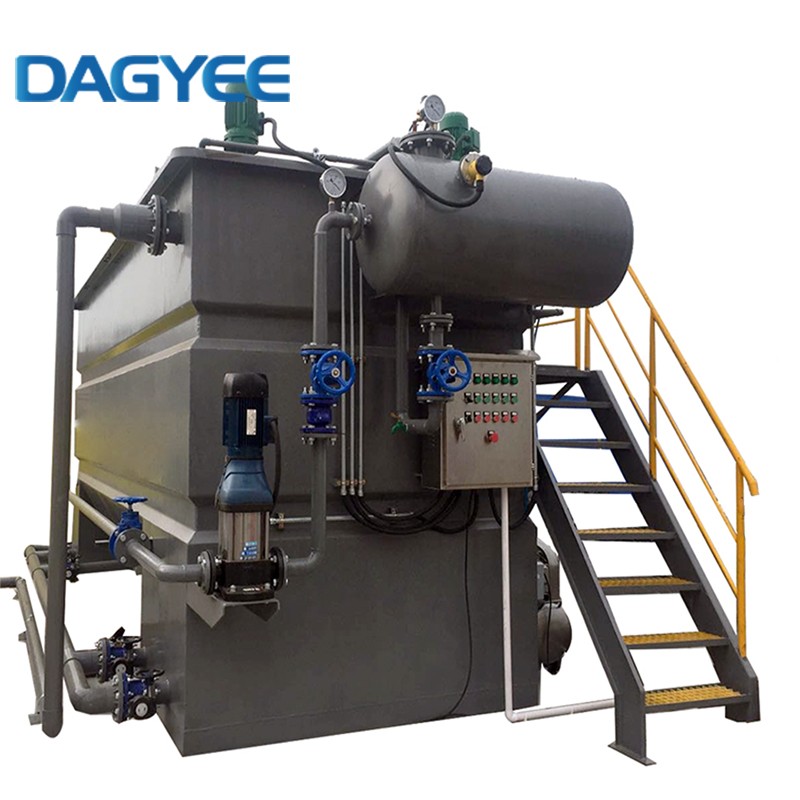

Dissolved air flotation Description
Air flotation technology DAF Dissolved air flotation plays an important role in solid-liquid separation Simultaneously reduce COD, BOD, chroma. Firstly, mix flocculating into raw water and stir thoroughly. After the effective retention time, the raw water enters into the reaction zone where microscopic air bubbles adhere to the floc and then flows into the separation zone. Under the buoyancy effects, the tiny bubbles float the flocs to the surface, forming a sludge blanket. skimmer removes the sludge into the sludge hopper. Then the lower clarified water flows into the clean-water reservoir through the collecting pipe. Some of water are recycled to the flotation tank for the air dissolving system, while others will be discharged.
Dissolved air flotation Feature
Flow rate of one set: 1-200 m³/h.
Recycling flow dissolved air flotation.
High efficiency pressurization system providing high quantity dissolved-air water to create micro bubbles.
Custom design on different dissolved air flotation equipment and recycle flow ratio according to the type of wastewater treatment requirement to achieve target removal effect and stability.
Adjustable PP chain type skimmer to suit the different quantity of sludge.
Integrated coagulation flocculation tank and cleaning water tank(as optional)is
available to save the space and cost.
Automatic and remote controllable.
Material of construction: carbon steel epoxy painted, carbon steel FRP line, SS304/SS316L.
Dissolved Air Flotation Available Options
Access platforms with ladder or stairs
Automatic sludge pump out packages
Chemical pretreatment systems
Concrete tank designs for large in ground installations
Duplex systems for redundancy
Effluent monitoring
Effluent sampling
Explosion-proof design
Flash mix/flocculation tanks with mixers
Full FRP or stainless steel construction
Influent equalization
Influent / effluent lift stations
Instrumentation and controls
Removable covers with gaskets
Integral mechanical sludge thickener
On board reagent storage (day tanks)
Pilot size units for on-site testing
Potable water design
Special coatings
Sludge handling and dewatering
Dissolved Air Flotation Applications
Paper-making waste water treatment for fiber recycling.
Paint, printing and dyeing waste water treatment for color reduction.
Chemical waste water treatment.
Food waste water treatment.
Oil refinery for separating oil and impurity.
