Description

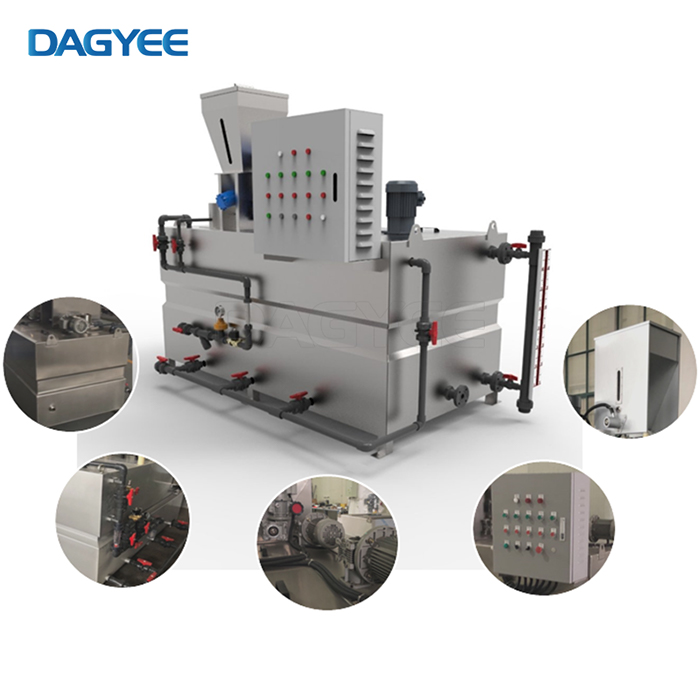

PAM polymer preparation unit Description
The flocculant dissolving concentration are available in certain scope;
Auto intermittent agitating function,which make sure the solution can be mixed throughly and keep the solution in good condition(3 series); Auto alarming and stopping when the powder feeding hopper at low stock, which have the advantage of energy-saving (optional);
Low noise-low vibration and stable performance;
Material adopts stainless steel sus304(standard type), others please confirm with us before ordering; Top brand spare parts to ensure excellent performance.
Auto powder feeding vacuum auxiliary system (optional).
Polymer dosing device
Polymer dosing device is composed of hopper, push screw, electric heater and etc. The effective volume of the hopper can meet the dosage for a long time which is equipped with sight glasses for observing material level monitored by the dry powder level meter. The push screw driven by the high-precision reducer can satisfy the dosage. The electric heater can be installed in the discharge pipe of push screw, and it can prevent the powder from caking.
Polymer dissolving device
Polymer dissolving device is composed of pre-soaking device, tank, and 3 sets of mixers. The pre-soaking device is to infiltrate and mix the polymer powder in advance. The 3 tanks are precast mixing tank, homogeneous slaking tank and solution storage tank, in which there is a mixer correspond to guarantee the homogeneity.
Water supply device
Water supply device is composed of pipeline, manual ball valve, filter, pressure gauge, solenoid valve, stop valve, and the rotor flow meter, etc.
PAM Polymer Preparation Unit Model
PAM Polymer Preparation Feature
Safe and automatic control
PAM dosing: Inverted bag apparatus or Manual dosing
Accurate and adjustable chemical dosage, avoiding unnecessary waste.
Easy maintenance, Attractive appearance, Small footprint, Compact structure
Strong technical support, design process according to user requirements
PAM Polymer Preparation Application
Aid condensation of city sewage
Aid condensation of industry sewage
Disposal and deposit of sludge
