Description

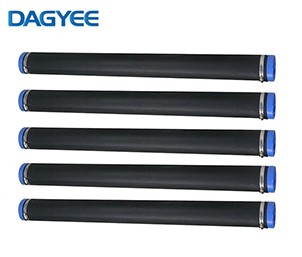

What Is Tube Air Diffusers
Tube Air Diffusers for effluent treatment
A suitable adapter can be used to connect one side of the Tube Air Diffusers for sewage treatment or in pairs to different rectangular and circular tubes ABS material . The diaphragm is made of high-quality EPDM material and has fine or coarse bubble perforations. When changing the membrane, the supporting tube ABS or PVC material can be reused.
Diffusers are typically connected to a piping system which is supplied with pressurized air by a blower. This system is commonly referred to as a diffused aeration system or aeration grid.
Tube Air Diffusers Parts
Especially recommended for the construction of mobile aeration systems, and all cases where a large output surface area is required when only a small amount of air distribution ducts are required.
The diffuser mainly composed
- A threaded head,
- A rigid polypropylene support and
- A tubular membrane with tiny holes in the elastomer
- Fixed with a stainless steel band clamp
Diffuser Technical Table
| Model | φ63*500 | φ63*750 | φ63*1000 |
| MOC | EPDM/Silicon membrane | EPDM/Silicon membrane | EPDM/Silicon membrane |
| ABS /PP carrier plate | ABS /PP carrier plate | ABS /PP carrier plate | |
| Length | 500mm | 750mm | 1000mm |
| Connector | 3/4 NPT | 3/4 NPT | 3/4 NPT |
| Flow range | 2-14m³/h | 5-20m³/h | 6-28m³/h |
| Bubble Size | 0.8-2mm | 0.8-2mm | 0.8-2mm |
| Service Area | 0.75-2.5m² | 1.0-3.0m² | 1.5-3.5m² |
| Service Life | >8 year | >8 year | >8year |
DAGYEE Diffuser Features
- Increased dissolved oxygen DO
- Declining biochemical oxygen demand BOD
- Improved treatment of TSS total suspended solids
- Short notice emergency aeration and simplified treatment repair
- Aeration system energy savings
-
Overall reduction in maintenance
Diffuser Used
- Industrial Wastewater Aeration
- Portable And Versatile Aeration System
- Efficient Mixing & Aeration
- Emergency Wastewater Aeration
- Many Years of Experience at Your Service
Diffuser Application
- Preservation aeration of waste water
- Oxygenation of activation basins
- Oxygenation to stabilize sludge
- Aeration of rivers and lakes
- Aeration of fish ponds
-
CO admission for neutralization
